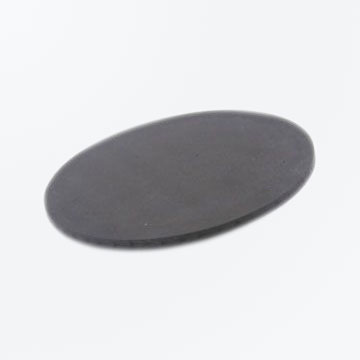

Manganese Sulfide Sputtering Target

Manganese Sulfide Sputtering Target List

Product Name	Shape	Purity	Size (inch)	Thickness (mm)
Manganese Sulfide Sputtering Target	Circular	99.9% - 99.99%	0 - 48	≥ 1
Manganese Sulfide Sputtering Target	Rectangular	99.9% - 99.99%	0 - 48	≥ 1
Manganese Sulfide Sputtering Target	Annular	99.9% - 99.99%	0 - 48	≥ 1
Manganese Sulfide Sputtering Target	Oval	99.9% - 99.99%	0 - 48	≥ 1
Manganese Sulfide Sputtering Target	Cylindrical	99.9% - 99.99%	0 - 48	≥ 1
Manganese Sulfide Sputtering Target	Planar	99.9% - 99.99%	0 - 48	≥ 1
Manganese Sulfide Sputtering Target	Rotatable (rotary)	99.9% - 99.99%	0 - 48	≥ 1

Note: We provide customized service. If you don't find the sputtering targets you want, please send us an email directly. We can customize it according to your requirements.

Manganese sulfide is a kind of sulfide with pink green or brown green powder appearance. The chemical formula is MnS. Manganese sulfide has three different forms: α - MnS, β - MnS and γ - MnS. Among them, α - MnS is green, it is NaCl structure; β - MnS and γ - MnS are pink, they are sphalerite structure and wurtzite structure respectively, as a window or buffer material, they have great potential in the application of solar cells. As a p-type semiconductor, manganese sulfide has a wide bandwidth (eg = 3.7ev).

Manganese sulfide sputtering target is a kind of high purity manganese sulfide raw material by sputtering deposition. According to the different shapes, manganese sulfide sputtering targets can be divided into circular, rectangular, square, annular, oval, cylindrical, planar, rotatable (rotary) manganese sulfide targets. Manganese sulfide can be used in coating, ceramic industry, and also as a very important magnetic semiconductor.

Manganese Sulfide Sputtering Target Application

High purity manganese sulfide sputtering target can be used in many applications. The details are as follows:
- Semiconductor;
- Chemical vapor deposition (CVD) display;
- Physical vapor deposition (PVD) display;
- Optical applications.
